Manufacturing Range

Pressure Vessel

Code of Construction : ASME SECT VIII – DIV 1/PD 5500/IS 2825∙
Material of Construction : SA 515,516 Gr. 60/70, SA 537CL II, SA 240 – 304,304L, 316, 316L, SA 516 GR 70, SA 106,EN8,EN9,EN19∙
Thickness Range : CS up to 40 mm thk & SS up to 25 mm thk.
Diameter Range : Up to 5000mm
Dished End Construction: Ellipsoidal, Tori spherical & Hemispherical

Heat Exchangers

Code of Construction : TEMA CL ‘C’ & CL ‘R’
Type of Exchangers : Fixed tube sheet, Floating head, ‘U’ tube, DoublePipe, Condensers, Calandria,
Material of Construction : CS & SS.
Construction : Expanded/Welded/light expansion/seal welding/Light
(Tube to tube sheet) Expansion & Seal welding.
Tube sheet Thk Range : Up to 200mm.
Tube Size : 20mm OD & 25mm OD.
Tube THK : 1.5mm/2mm/2.5mm & 3.15mm ∙
No. of Tube : Up to 1000 Nos.

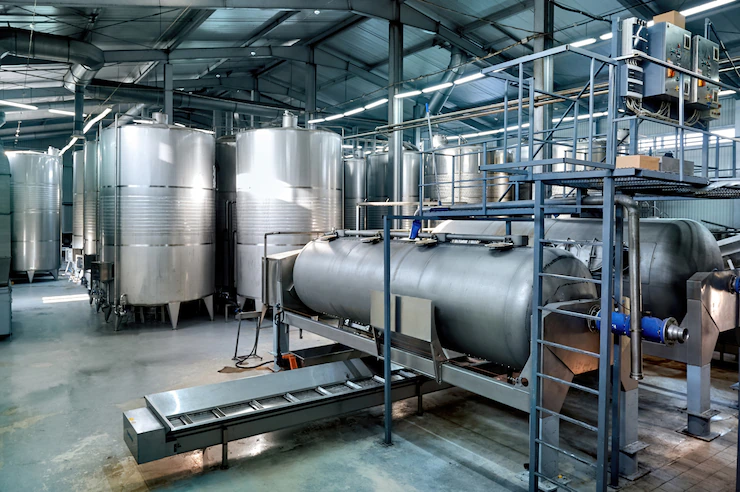

Storage Tanks

Code of Construction : API – 650
Material of Construction : IS 2062 Gr.B & SS.
Thickness Range : 5mm to 20 mm.
Diameter Range : Up to 20 Mtr.

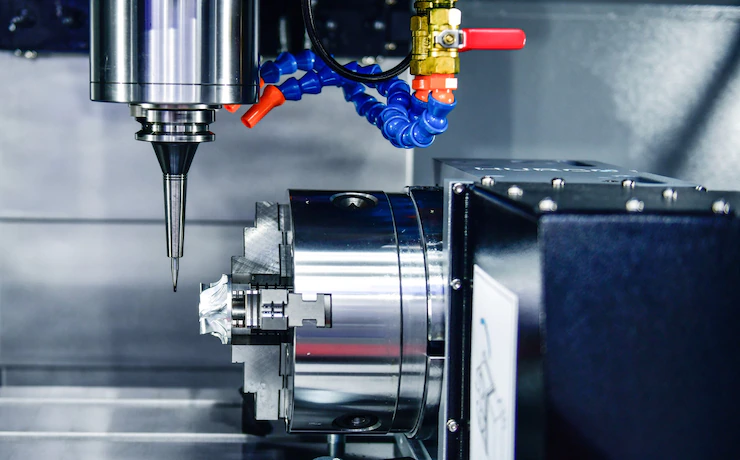

Precision Machining

VMC, CNC Lath precision machining services for shaft, bearing house , rope drum, buffer block, flanges and many more customized requirements

Process Piping

Process Piping, IBR PIPING,Utility Piping, ETP Piping in material IS1239, A106 Gr B, SS304,SS316. Hydrocarbon Pipe lines, Flow Arms & Piping Spools in A106 Gr B Sch40 to Sch160 with100% RT.CS piping supplied with Shot blasting & Painting; SS piping supplied with Mirror finish
